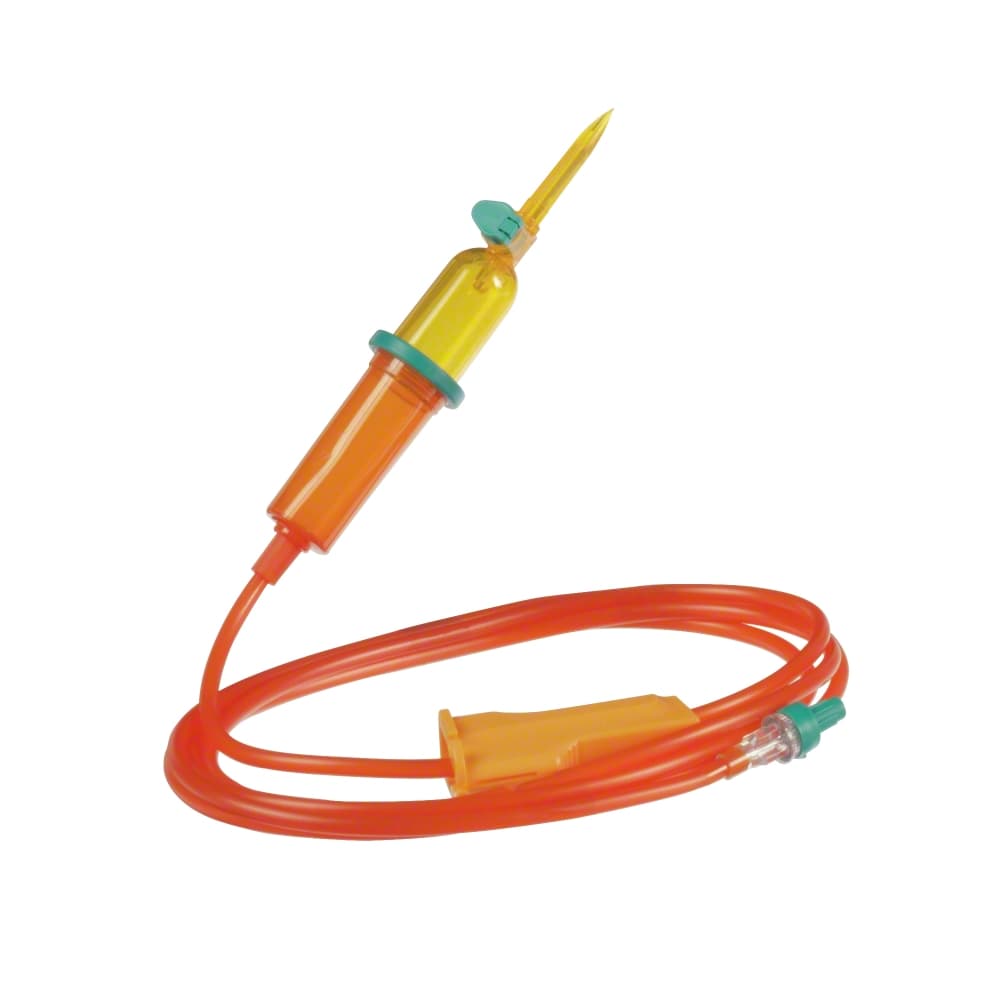

INTRAFIX SAFESET UV-PROTECT. LL, 180CM
Back
4063131
INTRAFIX SAFESET UV-PROTECT. LL, 180CM
Lisa ostukorvi lõik
Spetsifikatsioonid
Dokumendid
Standard infusion sets
Brand name
Intrafix®
Product name (HC)
Intrafix® SafeSet
Product type
Administration set
Application
Infusion
Type of administration set
Gravity
Container connector
IV standard spike
Pikkus
180.00 cm
Inner-ø tube
3.00 mm
Outer-ø tube
4.10 mm
Priming volume
23.060 ml
Type of filter
Fluid filter AirStop
Position of filter
Drip chamber
Particle retention [µm]
3 µm
drops/ml
20
Air ventilation
vented
Flow control device
Roller clamp
with AirStop
Yes
with PrimeStop
Yes
Number of back check valves
-
Number of needle-free valves
-
Number of Injection Access
0
Injection access
No
Type of Injection Access
-
Connection
Luer-Lock/male
Light-protected
Yes
Color of light protection
orange transparent
Pump compatibility (Type)
-
maks rõhk
2.0 bar
Materjal
PUR
Catalogue attribute
-
Type of packaging
Peel pack
Tüüp
No
Tüüp
No
Tüüp
No
Tüüp
No
Tüüp
No
Product contains PVC
No
Tüüp
No
Product contains DEHP
No
Product contains Nickel
No
Materjal
disposable
Tüüp
sterile
Tüüp
EO
Length (Inch)
71"
