INTRAFIX PRIMELINE FLUSH SECONDARY LINE
Back
4110001

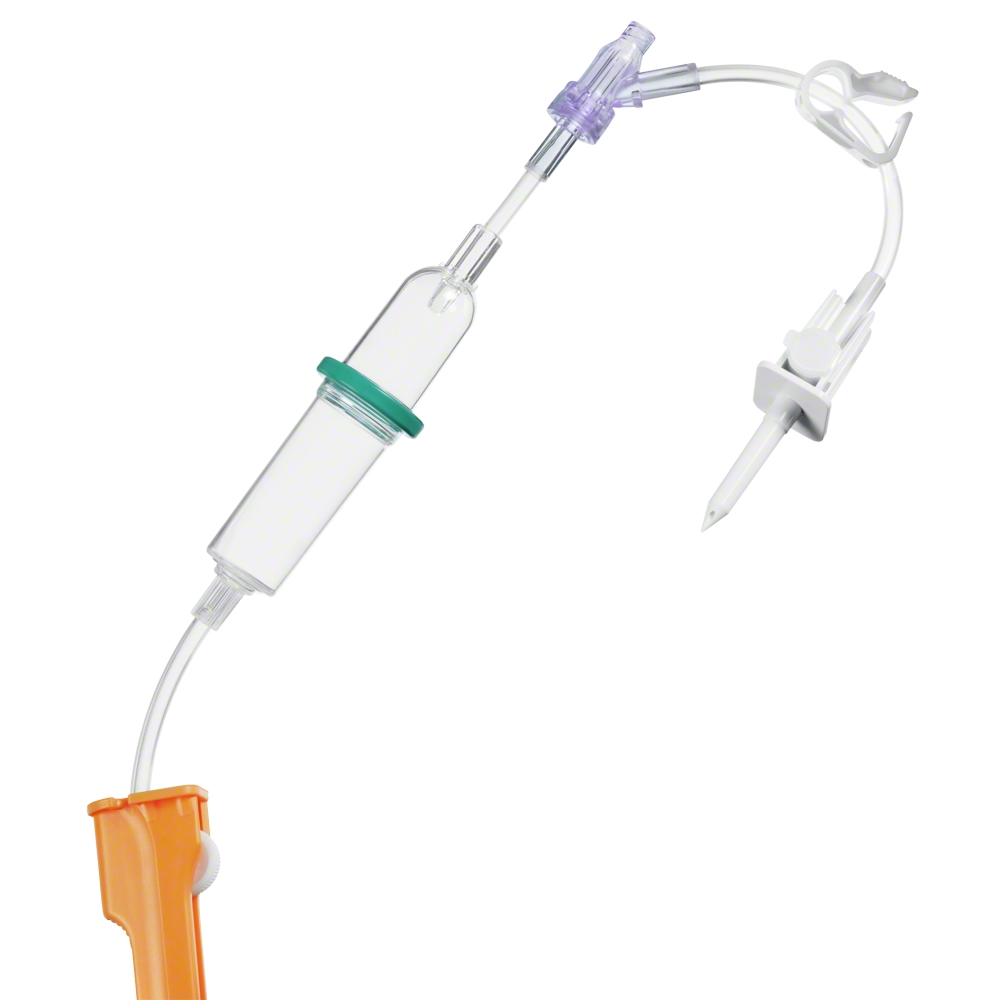

INTRAFIX PRIMELINE FLUSH SECONDARY LINE
Lisa ostukorvi lõik
Spetsifikatsioonid
Dokumendid
Standard infusion sets
Brand name
Intrafix®
Product name (HC)
Intrafix® Primeline
Product type
Administration set
Application
Infusion
Type of administration set
Pressure
Container connector
IV standard spike
Pikkus
35.00 cm
Inner-ø tube
3.00 mm
Outer-ø tube
4.10 mm
Priming volume
12.480 ml
Type of filter
Fluid filter
Position of filter
Drip chamber
Pore size (Fluid filter)
15 µm
Particle retention [µm]
20 µm
drops/ml
20
Air ventilation
vented
Flow control device
Snap clamp
with AirStop
No
with PrimeStop
No
Number of back check valves
-
Number of needle-free valves
-
Number of Injection Access
0
Injection access
No
Type of Injection Access
-
Connection
Luer-Lock/male
Light-protected
No
Color of light protection
-
Pump compatibility (Type)
Infusomat® compact plus P, Infusomat® Space P, Infusomat® P
maks rõhk
2.0 bar
Materjal
PVC
Catalogue attribute
-
Type of packaging
Peel pack
Tüüp
Yes
Tüüp
No
Tüüp
No
Tüüp
No
Tüüp
No
Product contains PVC
Yes
Tüüp
No
Product contains DEHP
No
Product contains Nickel
No
Materjal
disposable
Tüüp
sterile
Tüüp
EO
Length (Inch)
14"
