ACCULAN 4 REAMER ATTACHMENT AO-LARGE
Back
GB668R

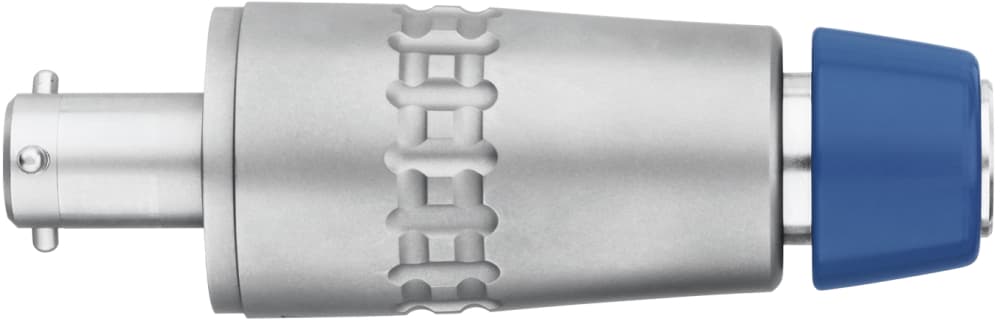

ACCULAN 4 REAMER ATTACHMENT AO-LARGE
Lisa ostukorvi lõik
Spetsifikatsioonid
Dokumendid
Töötlemine
Handpieces/Attachments
Product Search Type
Reamer Attachment
Brand name
ACCULAN 4
Materjal
Power Systems
Tüüp
Handpiece/Attachment
Tüüp
with large AO chuck
Outer length (mm)
108 mm
Outer width (mm)
35 mm
Speed
0 1/min - 250 1/min
Tool hub
AO large
Torque
19.0 N m
Cannulation
4.0 mm
Kaal
300.00 g
Kuju/vorm
Orthopaedics / Traumatology
Tüüp
not sterilized ex works
Tüüp
No
UDI otsene märgistus
Yes
Tüüp
No
Materjal
reusable
Tüüp
non-sterile
