Injekt®-F Duo

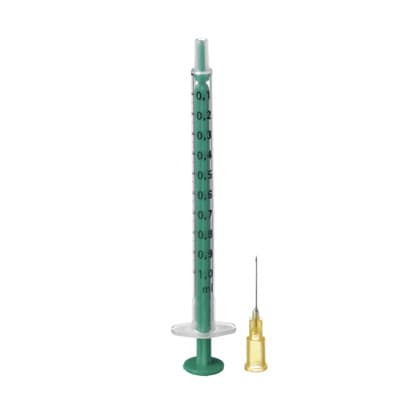

2-osaline täpse annustamise 1 ml süstal juurdelisatud nõelaga 0,5 x 16 mm.
Kaheosaline täpse annustamise süstal koos Sterican® süstlanõelaga ühekordseks kasutamiseks.
Injekt®-F Duo Luer ühendusega.
1 ml süstal, 0,5 x 16 mm nõel.
Nihutatud ühenduskohaga jääkmahu ja ravimikao vähendamiseks.
Materjal: polüpropüleen/polüetüleen.
Rohelise kolviga jälgimise hõlbustamiseks.
Väga läbipaistev silinder.
Kontrastne must gradueering.
Pikendatud skaala.
Gradueeringu intervall 0,01 ml.
Minimaalne jääkmaht.
Vastab standardile ISO 7886-1.
Ei sisalda silikoonõli.
Lateksivaba.
Karbis 100 süstalt.
